Customized SWG-SS304 Spiral Wound Gasket for Superior Sealing Performance
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
|---|---|
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | Swg-ss304 | Performance: | Temperature |
|---|---|---|---|
| Shape: | O-Ring | Standard: | Standard |
| Quality: | Excellent | Sizes: | As Drawing |
| Transport Package: | By Ply-Wood | Specification: | Customized |
| Trademark: | DC | Origin: | Beijing, China |
| HS Code: | 2701110090 | Supply Ability: | 500PCS Per Day |
Product Description

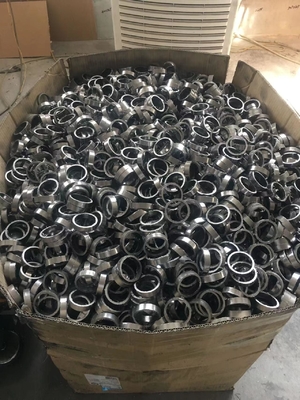

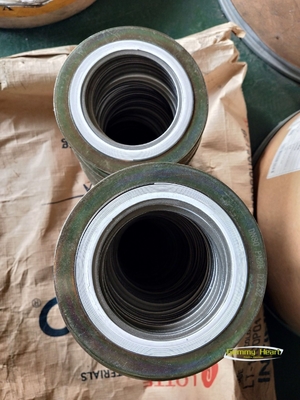

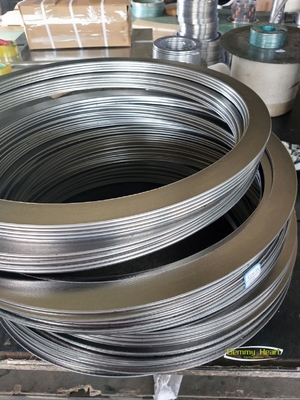

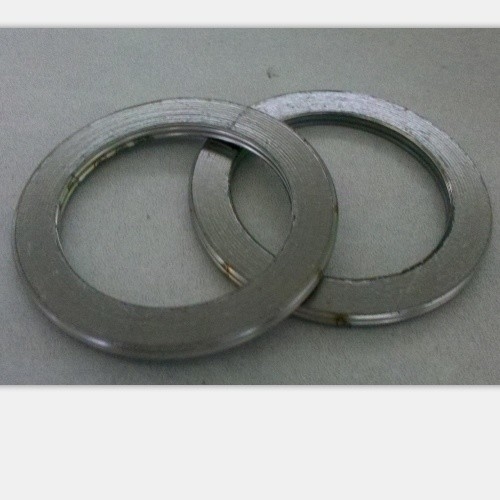

spiral wound gasket with 304SS:
Application
Suitable for the temperature, pressure alternating severe sealing parts, its the static seal for pipe,
valve, pump, heat exchanger, tower, manhole, hand hole and others flange connection.
Through changing winding steel belt tension force, will change the density (hardness) of winding gasket to
meet the needs of various application areas, Widely used in petrochemical, machinery, electric power,
metallurgy, shipbuilding, medicine, atomic energy, and aerospace industries.
Technical Data
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your
customers' needs.
Application
Suitable for the temperature, pressure alternating severe sealing parts, its the static seal for pipe,
valve, pump, heat exchanger, tower, manhole, hand hole and others flange connection.
Through changing winding steel belt tension force, will change the density (hardness) of winding gasket to
meet the needs of various application areas, Widely used in petrochemical, machinery, electric power,
metallurgy, shipbuilding, medicine, atomic energy, and aerospace industries.
Technical Data
| Type | ASL 575A | ASL 575B | ASL 575C | ASL 575D | |||
| Model | Basic type | inner ring | outer ring | inner&outer ring | |||
| Application | Tongue/ groove surface | Male/ female surface | Raised face | Raised face | |||
| Steel strip material | 304 304L 316 316L 321 Monel Inconel ect. | ||||||
| Filling material | ASB | FG | PTFE | MICA | CER | ||
| Rings material | Carbon steel 304L 321 316L Monel Iconel | ||||||
| Pressure | ≤260bar | ||||||
| Temperature | -200ºC~+1100ºC | ||||||
| PH | 0-14 | ||||||
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your
customers' needs.
