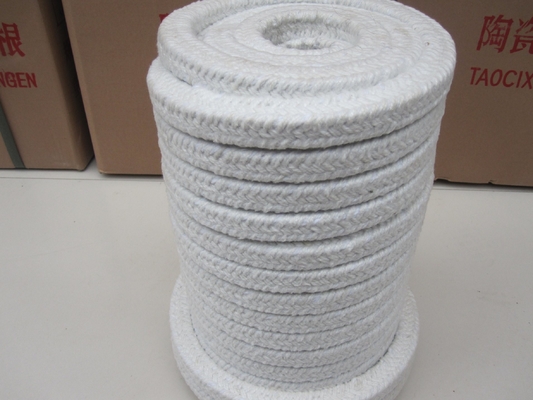

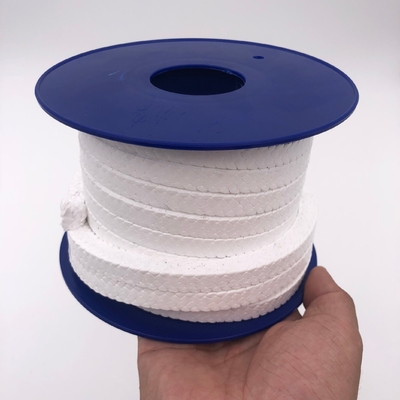

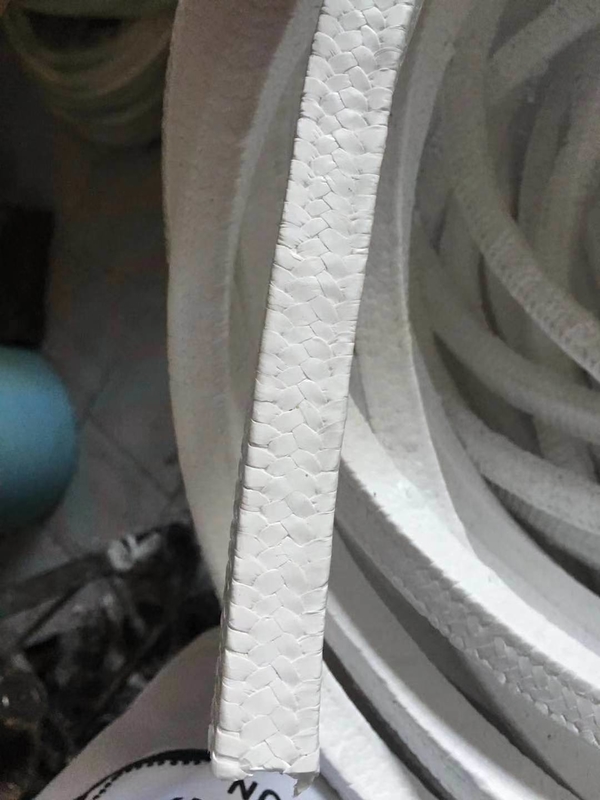

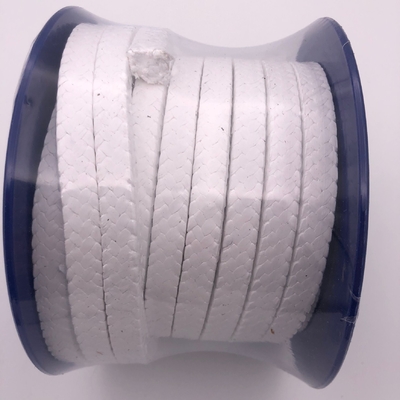

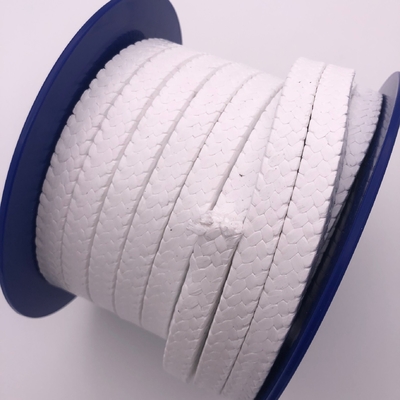

Standard 100% Pure PTFE Braided Packing Rope for and Customized Sealing Performance
Product Details:
| Place of Origin: | China |
| Certification: | Without |
Payment & Shipping Terms:
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
|---|---|
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | DC-1.85 | Application: | Machinery |
|---|---|---|---|
| Sizes: | 3*3mm To 60*60mm | Transport Package: | By Carton Box |
| Specification: | According To Customers Requirements | Trademark: | DC |
| Origin: | China | HS Code: | 2701190000 |
| Supply Ability: | 300kgs Each Day | Customization: | Available |
| Standard: | Standard | Material: | Carbon Fiber |
Product Description
100% pure ptfe braided packing rope:
The packing is woven of graphite PTFE yarn twisted through a mixture of PTFE dispersion resins and fine graphite powder plus moderate amount of heat-resistant lubricant.
Application:
For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
PARAMETER :
Size:
Square:4*4mm, 6*6mm, 8*8mm, 10*10mm, 12*12mm, 14*14mm, 16*16 mm, 18*18mm,20*20mm, 22*22mm,25*25mm, 30*30mm, 35*35mm, 40*40mm,
45*45mm, 50*50mm , etc.
Can also be produced into flat or round according to customers' specific requirements.
Packaging & Shipping:
1)carton box /plastic woven bag
2)delivery time:15-20days after the order confimed
3)supply ability:500meter per day
our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
The packing is woven of graphite PTFE yarn twisted through a mixture of PTFE dispersion resins and fine graphite powder plus moderate amount of heat-resistant lubricant.
Application:
For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
PARAMETER :
| Pressure | Rotating | 20 bar |
| Reciprocating | 100 bar | |
| Static | 150 bar | |
| Shaft speed | 16 m/s | |
| Density | 1.4~1.6g/cm3 | |
| Temperature | -150~+280°C | |
| PH range | 0~14 | |
Size:
Square:4*4mm, 6*6mm, 8*8mm, 10*10mm, 12*12mm, 14*14mm, 16*16 mm, 18*18mm,20*20mm, 22*22mm,25*25mm, 30*30mm, 35*35mm, 40*40mm,
45*45mm, 50*50mm , etc.
Can also be produced into flat or round according to customers' specific requirements.
Packaging & Shipping:
1)carton box /plastic woven bag
2)delivery time:15-20days after the order confimed
3)supply ability:500meter per day
our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
