Industrial Furnaces GF-104 Carbon Felt Blanket with Crystal Morphology Flake Graphite
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
|---|---|
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GF-104 | Type: | Graphite Electrodes |
|---|---|---|---|
| Carbon Content: | High-Carbon | Grade: | Industrial Grade |
| Forming Way: | Extruded Graphite | Crystal Morphology: | Flake Graphite |
| Composition: | 99%Carbon | Transport Package: | By Carton Box |
| Specification: | 5mm | Trademark: | DC |
| Origin: | Beijing, China | HS Code: | 2701110090 |
| Supply Ability: | 500 Square Meters Each Day | Customization: | Available |
| Bulk Density: | 0.14 | Ash: | <0.05 |
Product Description

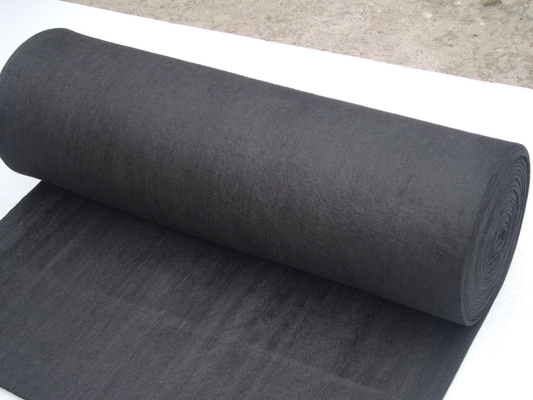

carbon graphite felt blanket for industrial furnaces:
graphite felt:
pan graphite felt.
Feature:
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
Application:
Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products .
Etc

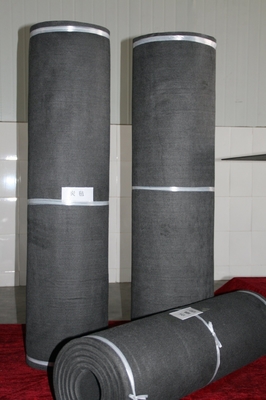

Graphite/carbon felt
99-99-
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
graphite felt:
pan graphite felt.
Feature:
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long life time / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
Application:
Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products .
Etc
Graphite/carbon felt
99-99-
| ITEM | |||
| Trademark | PAN-based Carbon Felt JXA-12 | PAN-based Graphite Felt JXA-13 | |
| Material | PAN-CF | PAN-CF | |
| Bulk density g/cmPP3 | 0.14 | 0.13 | |
| Carbon % | ≥98 | ≥99 | |
| Thermal conductivity 1150PPoPPC W/m .k | 0.12-0.16 | 0.12-0.16 | |
| Tensile Strength (Mpa) | 0.15 | 0.14 | |
| Crushing stress at 10% compression N/cmPP2 | 8-12 | 8-10 | |
| Ash % | ≤0.05 | ≤0.005 | |
| Processing temperature | 1200PoPC | 2300PoPC | |
| Operating Condition | in the air | ≤400PoPC | ≤400PoPC |
| in the vacuum | ≥1500PoPC | ≥2300PoPC | |
| In the inert atmosphere | ≥2300PoPC | ≥3300PoPC | |
| Spec | lenght (m) 9-12 | ||
| Wide (mm)1000-1300 | |||
| Thickness (mm)3.5.8.10 | |||
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
