GP-ELC Graphite Plate for Electrode Bulk Density 1.85 and Multiple Dimension Choices
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
|---|---|
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GP-ELC | Grade: | Industrial Grade |
|---|---|---|---|
| Forming Way: | Extruded Graphite | Crystal Morphology: | Flake Graphite |
| Composition: | 100% Carbon | Transport Package: | By Ply-Wood |
| Specification: | Customized | Trademark: | DC |
| Origin: | Beijing, China | HS Code: | 3801100090 |
| Supply Ability: | 300PCS Per Day | Customization: | Available |
| Type: | Graphite Sheets | Bulk Density: | 1.85 |
Product Description

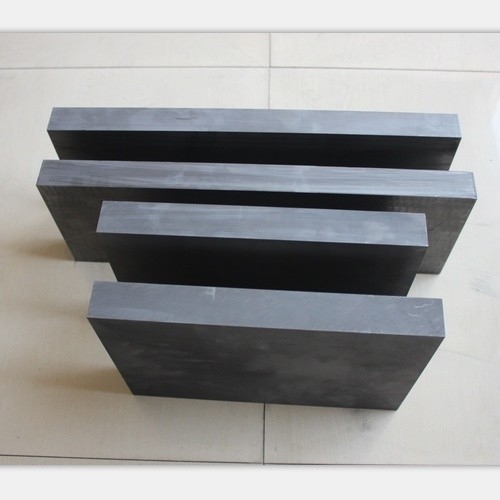

different sizes of graphite plate for electrode:
Advantages of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1,high strength,high hardness
2,good heat-resistance, low porosity
3,anti-abrasion,anti-scour
4,high purity graphite
Graphite plates have good resistance to thermal shock, oxidation and corrosion, and have suitable resistivity and homogenous structure. And it offers excellent sealing capabilities under extreme conditions with a longer life and less maintenance
Application of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1, photovoltaic industry
2,Precision casting industry ,coper continuous parts
3, EDM graphite
4, crucible for melting rare metals
5,machine analysis container
6, alloy industry, sintering molds,pumps
Advantages of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1,high strength,high hardness
2,good heat-resistance, low porosity
3,anti-abrasion,anti-scour
4,high purity graphite
Graphite plates have good resistance to thermal shock, oxidation and corrosion, and have suitable resistivity and homogenous structure. And it offers excellent sealing capabilities under extreme conditions with a longer life and less maintenance
Application of Graphite anode plate/graphite cathode plate/graphite bipolar plate :
1, photovoltaic industry
2,Precision casting industry ,coper continuous parts
3, EDM graphite
4, crucible for melting rare metals
5,machine analysis container
6, alloy industry, sintering molds,pumps
| TECHNICAL SHEET:(COMMON MODELS) |
| Technical Specification | DC-3 | DC-4 | DC-5 | DC-6 |
| Bulk Density(g/cm3) | ≥1.72 | ≥1.78 | ≥1.85 | ≥1.9 |
| Ash Content(PPM) | ≤ 1000 | ≤1000 | ≤1000 | ≤1000 |
| Shore Hardness | ≥40 | ≥40 | ≥45 | ≥50 |
| Specific Resistance (μ.Ω.m) | ≤12 | ≤12 | ≤10 | ≤8 |
| Flexural Strength (MPa) | ≥30 | ≥35 | ≥40 | ≥45 |
| Compressive Strength (MPa) | ≥50 | ≥60 | ≥70 | ≥85 |
| Max. Grain Size(μm) | ≤43 | ≤43 | ≤43 | ≤43 |
| Coefficient of Thermal Expansion Mm/°C | ≤4.5*10-6 | ≤4.5*10-6 | ≤4.4*10-6 | ≤4.4*10-6 |
