Customized Pyrolytic Graphite Density 2.2g Crystal Morphology with Extruded Graphite
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | PG-145 | Carbon Content: | High-Carbon |
|---|---|---|---|
| Grade: | Industrial Grade | Forming Way: | Extruded Graphite |
| Crystal Morphology: | Flake Graphite | Composition: | Pyrolytic Graphite |
| Transport Package: | By Ply-Wood | Specification: | 75*75*1mm |
| Trademark: | DC | Origin: | Beijing, China |
| HS Code: | 7301100000 | Supply Ability: | 10PCS Each Day |
| Customization: | Available | Temperature: | 3850 |
| Color: | Black | ||
Product Description

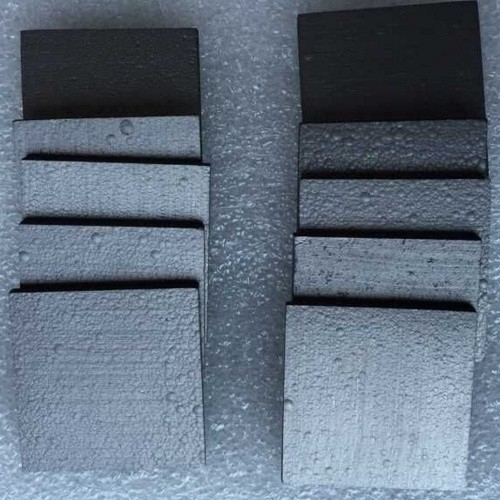

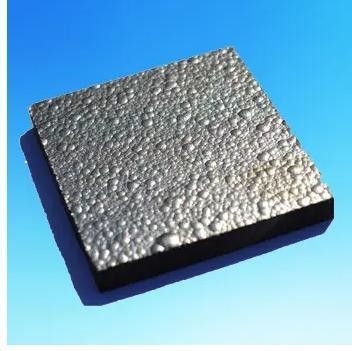

density 2.2g sizes 50*50*1mm pyrolytic graphite plate:
There is more sizes pyrolytic graphite, we sincerely welcome your inquiry!
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
There is more sizes pyrolytic graphite, we sincerely welcome your inquiry!
| PROPERTY | US VALUE | METRIC VALUE | ||
| Density | 0.079 | lb / in 3 | 2.2 | gr / cm 3 |
| Flexural Strength - AB | 13000 | psi | 89.6 | mpa |
| Compressive Strength - AB | 15000 | psi | 103.4 | mpa |
| Compressive Strength - C | 25000 | psi | 172.4 | mpa |
| Shear Strength - AB | 1000 | psi | 6.9 | mpa |
| CTE - AB | 0.8 | in / in ° F x 10 -6 | 0.5 | Microns / m ° C |
| CTE - C | 11 | in / in ° F x 10 -6 | 6.5 | Microns / m ° C |
| Thermal Conductivity - AB | 232 | BTU / (h.ft 2 ° F / ft) | 400 | W / (m 2. K / m) |
| Thermal Conductivity - C | 2 | BTU / (h.ft 2 ° F / ft) | 3.5 | W / (m 2. K / m) |
| Resistivity (RT) - AB | 0.2 * 10-3 | ohm / inch | 0.5 * 10-3 | ohm / cm |
| Resistivity (1650C) - AB | 0.1 * 10-3 | ohm / inch | 0.3 * 10-3 | ohm / cm |
| Resistivity (RT) - C | 0.2 | ohm / inch | 0.5 | ohm / cm |
| Resistivity (1650C) - C | 0.1 | ohm / inch | 0.3 | ohm / cm |
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
