Graphite Tube for Industrial Furnace/ Heat Exchangers /Casting Customized Forming Way
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
|---|---|
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | DC-1.85 | Grade: | Industrial Grade |
|---|---|---|---|
| Forming Way: | Molded Graphite | Crystal Morphology: | Flake Graphite |
| Composition: | 100% Carbon | Transport Package: | By Ply-Wood |
| Specification: | Customized | Trademark: | DC |
| Origin: | Beijing, China | HS Code: | 2701121000 |
| Supply Ability: | 100PCS Per Day | Customization: | Available |
| Bulk Density: | 1.83 | Type: | Graphite Mold |
Product Description

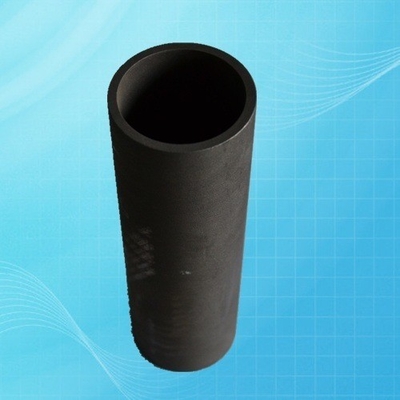

Graphite tube for industrial furnace/ heat exchangers /Casting:
GRAPHITE TUBE:
High purity graphite tubes means fine texture ,high purity-strength-density graphite products using the fine quality coke (low ash content)as its raw material.It is made in a scientific formula through the process of mixing ,pressing,baking andgraphitization(above 2500 degrees).Therefore ,it has the good properties of high temperature resistance,high electric and thermal conductivity.
high purity graphite tubes is widely used in the electronic,mechanical and chemical industry etc.It can also be used as rectifier graphite anode ,mold for electronics agglomeration,constantly casting graphite crystallizer,accurate casting,the melting of semiconductor and rare metals,graphite crucible,mechanical seal in some fields as chemical industry,electrospark machining discharge anode,etc.
Techincal properties of high purity graphite:
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
GRAPHITE TUBE:
High purity graphite tubes means fine texture ,high purity-strength-density graphite products using the fine quality coke (low ash content)as its raw material.It is made in a scientific formula through the process of mixing ,pressing,baking andgraphitization(above 2500 degrees).Therefore ,it has the good properties of high temperature resistance,high electric and thermal conductivity.
high purity graphite tubes is widely used in the electronic,mechanical and chemical industry etc.It can also be used as rectifier graphite anode ,mold for electronics agglomeration,constantly casting graphite crystallizer,accurate casting,the melting of semiconductor and rare metals,graphite crucible,mechanical seal in some fields as chemical industry,electrospark machining discharge anode,etc.
Techincal properties of high purity graphite:
| No. | Ash content(%) | Bulk density(g/cm3) | Compressive strength(Mpa) | Bending strength(Mpa) | Porosity(%) | |
| GM1 | GM11 | 0.01 | 1.83 | 60 | 28 | 18 |
| GM12 | 0.01 | 1.75 | 45 | 25 | 22 | |
| GM13 | 0.01 | 1.60 | 30 | 20 | 25 | |
| GM2 | GM21 | 0.05 | 1.83 | 60 | 28 | 18 |
| GM22 | 0.05 | 1.75 | 45 | 23 | 22 | |
| GM23 | 0.05 | 1.60 | 30 | 20 | 25 | |
| GM3 | GM31 | 0.10 | 1.83 | 60 | 28 | 18 |
| GM32 | 0.10 | 1.75 | 45 | 23 | 22 | |
| GM33 | 0.10 | 1.60 | 30 | 20 | 25 |
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
