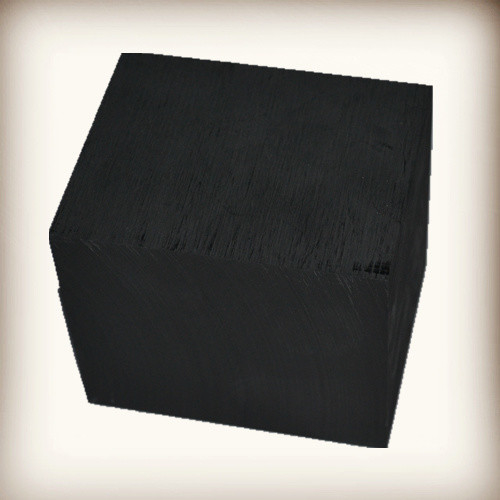

High Purity Density 1.78 1.85 1.91g/cm3 Molded Isostatic Artificial Graphite for Molds
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | DC-1.85 | Pore Diameter: | Microporous |
|---|---|---|---|
| Manufacturing Method: | Physical-Chemical Method Of Activated Carbon | Type: | Gas Adsorption |
| Appearance: | Cylindrical | Usage: | Environmental Protection Industry, Chemical Industry, Electric Power Industry, Gold Industry, Brass Casting, Diamond Tools, Vacuum Furnace |
| Physical Properties: | Shape | Chemical Properties: | Ash Content |
| Adsorption Properties: | Carbon Tetrachloride Adsorption Value | CAS No.: | 7782-42-5 |
| Formula: | C | EINECS: | 215-670-1 |
| Transport Package: | By Ply-Wood Box | Specification: | Custmoized |
| Trademark: | DC | Origin: | Beijing, China |
| HS Code: | 3801100090 | Supply Ability: | 500 Tons/Per Month |
Product Description
high purity density 1.78 1.85 1.91g/cm3 molded isostatic artificial graphite:
Graphite Technical date sheet:
We can supply below related graphite parts:
various kinds of heating elements, heating chamber, hearth, heating tube, bracket, joint board, graphite adjusting plate, joint part, graphite tie-in of conducting rod, graphite heater, graphite insulated chamber, graphite tray, graphite box for sintering, graphite plate, heater tube, bridge frame, connection patrs, electrode joint, insulation barrel and heat shield for heating system etc.
The main products have the general graphite, dipping graphite, high power graphite, super high power graphite, high purity graphite, import graphite; C/C composite (Carbon-Carbon), carbon fiber hard felt insulation mat, graphite felt, carbon felt, carbon rope, graphite paper; production of a variety of graphite board, graphite stick, graphite tube, graphite heater, graphite crucible, the thermal field, the graphite groove, push plate, saggar, semicircular groove, graphite sinter box and Carbon/Carbon (C/C)composite, C/C thermal field, C/C plates, C/C fasteners, C/C mould, carbon-carbon boat, C/C frame. All our products are widely used in metallurgy, chemical industry, electronics, machinery, petroleum, glass, semiconductor, precious metals, military, aerospace and other industries.
Graphite Technical date sheet:
| Technical date sheet | |||||||||
| Item No. | bulk density | electric resistivity | shore hardness | bending strength | compressive strength | porosity | ash content | sIzes of blocks | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | % | % | mm | ||
| DC-7 | 1.85 | 11 | 67 | 57 | 125 | 10 | 0.05 | 600x500x200 910x310x310 | |
| DC-8 | 1.91 | 12 | 68 | 65 | 135 | 10 | 0.05 | 770x210x150 910x310x310 | |
| Technical Date Sheet | |||||||||
| bulk density | electric resistivity | shore hardness | bending strength | compressive strength | modulus of elasticity | porosity | ash content | Purified ash | grain size |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | PPM | mic |
| 1.81 | 11/14 | 60 | 45 | 90 | 10.5 | 12 | 600 | 50 | 12 |
| 1.86 | 10/13 | 65 | 48 | 100 | 11 | 11 | 600 | 50 | 12 |
various kinds of heating elements, heating chamber, hearth, heating tube, bracket, joint board, graphite adjusting plate, joint part, graphite tie-in of conducting rod, graphite heater, graphite insulated chamber, graphite tray, graphite box for sintering, graphite plate, heater tube, bridge frame, connection patrs, electrode joint, insulation barrel and heat shield for heating system etc.
The main products have the general graphite, dipping graphite, high power graphite, super high power graphite, high purity graphite, import graphite; C/C composite (Carbon-Carbon), carbon fiber hard felt insulation mat, graphite felt, carbon felt, carbon rope, graphite paper; production of a variety of graphite board, graphite stick, graphite tube, graphite heater, graphite crucible, the thermal field, the graphite groove, push plate, saggar, semicircular groove, graphite sinter box and Carbon/Carbon (C/C)composite, C/C thermal field, C/C plates, C/C fasteners, C/C mould, carbon-carbon boat, C/C frame. All our products are widely used in metallurgy, chemical industry, electronics, machinery, petroleum, glass, semiconductor, precious metals, military, aerospace and other industries.
