Molded Graphite Medium-Grained Block and Round Rod with Flake Crystal Morphology
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: 6-12 months, Off Season Lead Time: 1-3 months |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GB-170 | Grade: | Industrial Grade |
|---|---|---|---|
| Forming Way: | Molded Graphite | Crystal Morphology: | Flake Graphite |
| Composition: | 100% Carbon | Transport Package: | By Ply-Wood |
| Specification: | Customized | Trademark: | DC |
| Origin: | Beijing China | HS Code: | 3801100090 |
| Supply Ability: | 500PCS Per Day | Customization: | Available |
| Bulk Density: | 1.82g | Type: | Graphite Rod |
Product Description

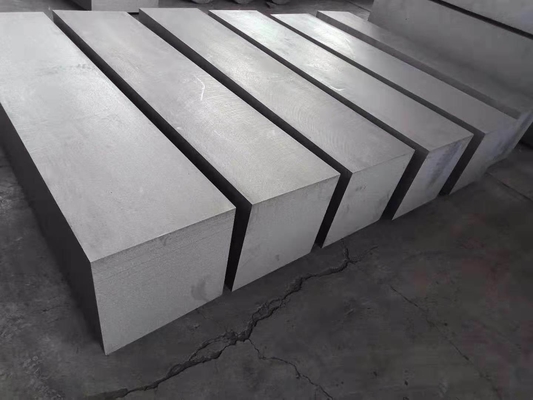

Medium-grained graphite block and round rod:
Technical Data:
Programmable properties
1.Medium grained.
2.High thermal and chemical resistance
3.Good thermal conductivity
4.MInimal wettability to molten metals
Specifications

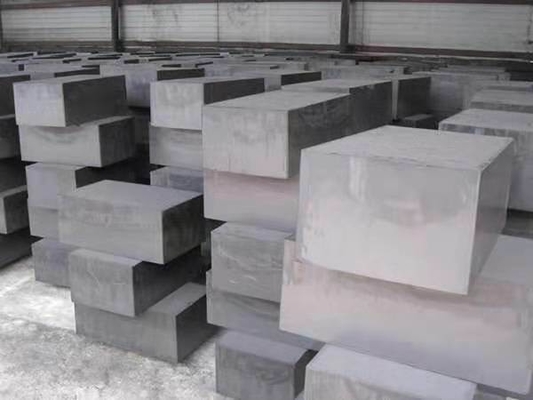

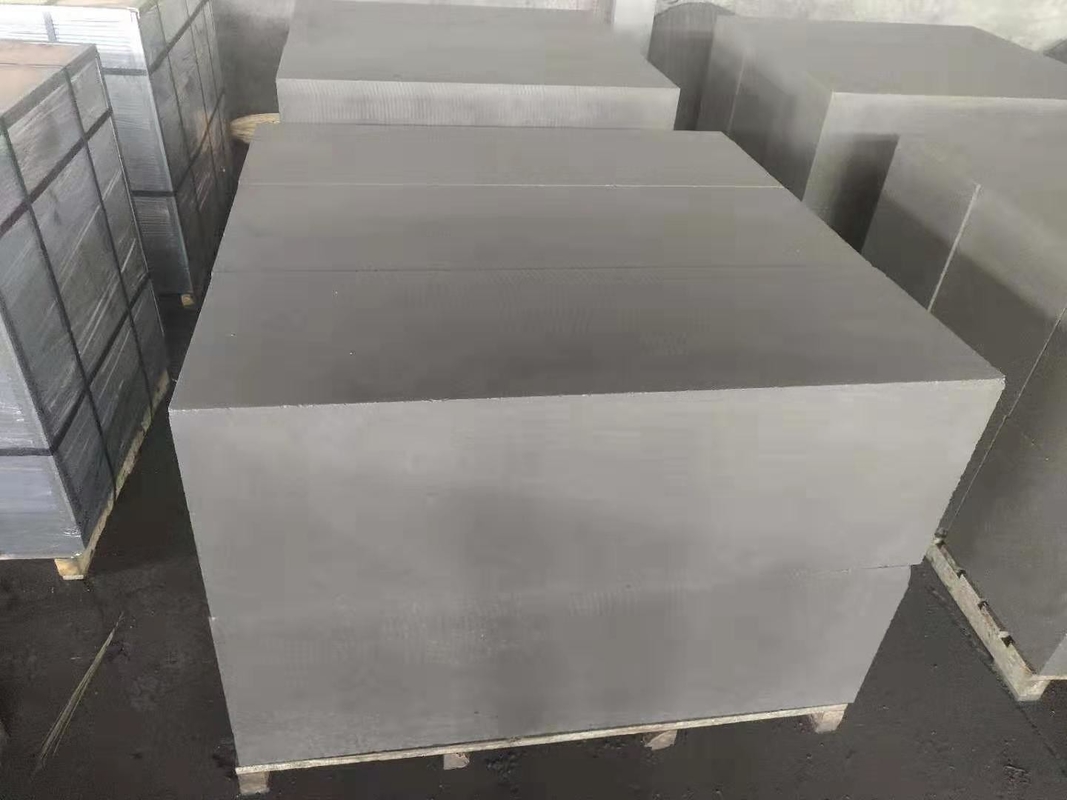

Block Size:
670*210*210
370*270*200
310*310*210
330*260*150
410*310*180
410*310*210
410*310*240
500*310*200
500*400*200
510*310*210
510*310*250
550*410*250
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs
Contact person: Ms.Chris
Technical Data:
Programmable properties
1.Medium grained.
2.High thermal and chemical resistance
3.Good thermal conductivity
4.MInimal wettability to molten metals
Specifications
| Specifications | Unit | Value |
| Bulk Density (Min.) | g/cc | 1.70 |
| Specific Resistance (Max.) | μ Ω·m | 9.5 |
| Compressive Strength (Min.) | MPa | 28 |
| Bending Strength (Min.) | MPa | 13 |
| Ash (Max.) | % | 0.3 |
670*210*210
370*270*200
310*310*210
330*260*150
410*310*180
410*310*210
410*310*240
500*310*200
500*400*200
510*310*210
510*310*250
550*410*250
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs
Contact person: Ms.Chris
